Elevator Car Air Purifier
Elevator Car Air Purifier
The Installation Brief

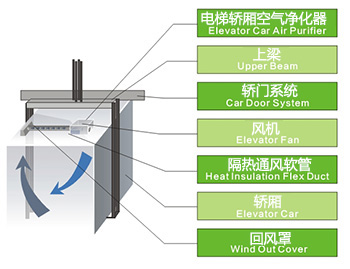

- TJHQ-F series elevator car air purifier
- 1. Determine air purifier air out holes, elevator original fan holes recommended. When install, remove the original fan, fix the purifier outlet directly on the car fan hole.
- 2. Determine air purifier return air holes, use the elevator original fan hole or open a new rectangular hole, fixed return air cover, connect the air purifier with return air cover by ventilation duct.
- 3. Fix the purifier remote receiver probe and the display panel in the car, insert the power plug.
- 4. Turn on or off by remote controller inside the car, or use the remote control to set the timer switch according to the time needed, after entering the fully automatic operation.

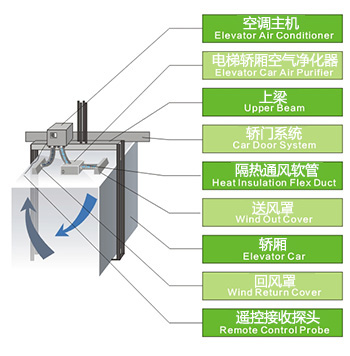

- TJHQ-K series elevator car air purifier
- 1. Connect the air purifier to the elevator air conditioner air out opening on the air conditioner and elevator air conditioner cold air out cover.
- 2. Connect the air purifier power cord to elevator air conditioner air purifier use cord, after which elevator air conditioner and air puffier go into synchronization
